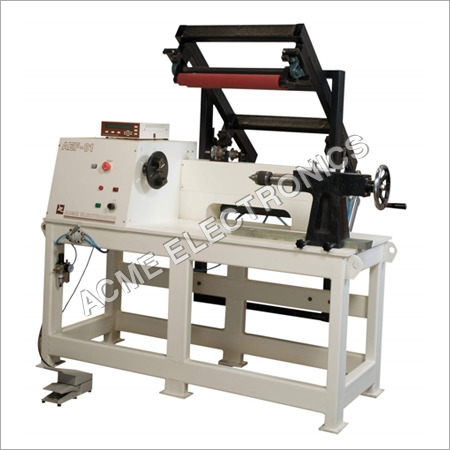

LV Coil Winding Machine

LV Coil Winding Machine
LV Coil Winding Machine
Product Code : LVCWM-07
Brand Name : ACME ELECTRONICS
Product Description

We are offering our clients a wide range of LV Coil Winding Machine that is specially designed to suit any type of winding applications. This machine is long-awaited for its attributes like elevated durability, sturdy construction, excellent functionality, effortless installation and longer service life. Offered machine is manufactured by our deft professionals using excellent quality components as per set industry standards. Also, this LV Coil Winding Machine is tested by quality controllers on diverse industrial parameters.

Specifications:

Speed Available with Variable Speed Option, which can be controlled with Speed Knob and also be Changed during Winding Process
Programming To have efficient programming, updated with several menu options such as Modify, Copy, Run, Add, Delete, List etc.
Wire Pitch Programmable and offered with option of Customization during Winding Process.
Jog Operation Ideal For Wire Termination Or Paper Insertion due to having Low Fixed Speed along with Foot Pedal Operation
Turns Up/Down Counting and Wire Guide Tracking in accordance with Winding Direction.
Layerstop Programmable Option.
Memory Have 95 Programs including 9 Sections of Every Program.
Traverse Tracking For this, the machine has Forward And Backward Movement Key, which is used when Winding Is Under Process.
Display Continuous Display On 40x2 LCD of Turns Wound and Many Other Data
Tapping Can Be Programmed for upto Upto 9 Tapping In Each Individual Program.
Computer Board Single Board For Operation

Technical Details:

Production Capability

AEF-01

Wire Size

0.5 to8.00 mm

Strip Size (upto)

15.0 x 5.0mm

Winding Width

500 mm

Bobbin Diameter

500 mm

Speed (max.)

100RPM
