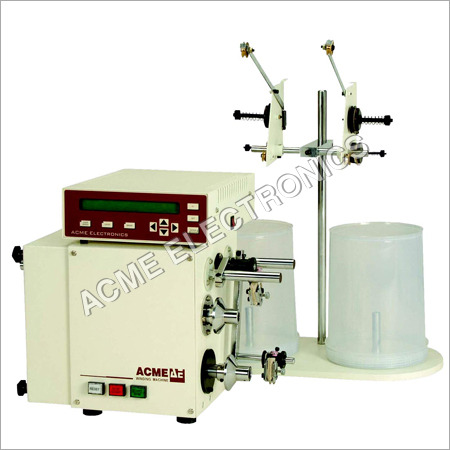

Coil Winding Machine

Coil Winding Machine
Coil Winding Machine
Send Inquiry
Product Code : CWM-01
Product Description

Coil Winding Machine

Based in India, our company is most reliable manufacturer, supplier and exporter of Coil Winding Machine. These remarkable machines are capable of winding wires of 0.02 to 0.80 mm with ease and in less time period. With programmable declaration in number of turns, programmable winding parameters, auto-stop function on braking of wire and option of using after connecting with key boards make our Coil Winding Machines widely demanded in the marketplace.

Specifications:

Speed

Programmable In Form of Percentage and may get Changed during Winding Process.

Parameters

Programmable Winding Parameters

Programming

For easy programing, updated with Various Menu such as Delete, List, Run, Add, Modify & Copy

Wire Pitch

It is Programmable And Can Be Modified during winding process

Acceleration

Programmable In No. Of Turns and can Reach Set Speed Within Specified Acceleration Turns.

Declaration

Programmable In No. Of Turns.

Turns Accuracy

0.05 Turns Or In Steps Of 18 Degree Angular .

Stop Angle

Programmable

Turns

Up/Down Counting With Wire Guide Tracking W.R.T. Winding Direction.

Over Speed

Gives Indication of Over-Speed To Achieve Quality Winding.

Layerstop

Programmable Option of Layer Stop

Manual Brake

Can be Purchased with Manual Activation Of Brake Option that Allow Holding Of Spindle

Wire-Brake Stop

Machine Stops On Braking Of Wire.

Winding Direction

Cw/Ccw Winding Direction

Memory

Have 99 Programs which includes 9 Sections For Each Program

Section Winding

Can wind around 9 Sections of a coil

Traverse Offset Position

Programmable In Mm.

Display

Have 40x2 LCD which regulates Continuous Display of No. Of Turns Wound and many Other Datas

Computer Board

Facilitates reliable operations due to Single Board

Audio Indication

On Any Key Press And Wire Brake.

Options

For Special Applications, it can be Customized


OPTIONAL ACCESSORIES:
  • Graduated Tensioner Unit For Fine Wire
  • Driven Tail Stock Synchronized With Spindle
  • Live Center Tail Stock For Support From Other Side
  • Horizontal Tensioner Unit For Heating Wires
  • Wire Guide With Nozzle For Thin Wire
  • Tape Attachment To Hold Tape Rolls
  • Safety Guard

Technical Details:

Production Capability

AEX-02

Wire Size

0.02 to 0.80 mm

Winding Width

100 mm

Bobbin Diameter

80 mm

Speed (max.)

9000 RPM
